Audac COM12 100V Amplifier Melbourne, Australia

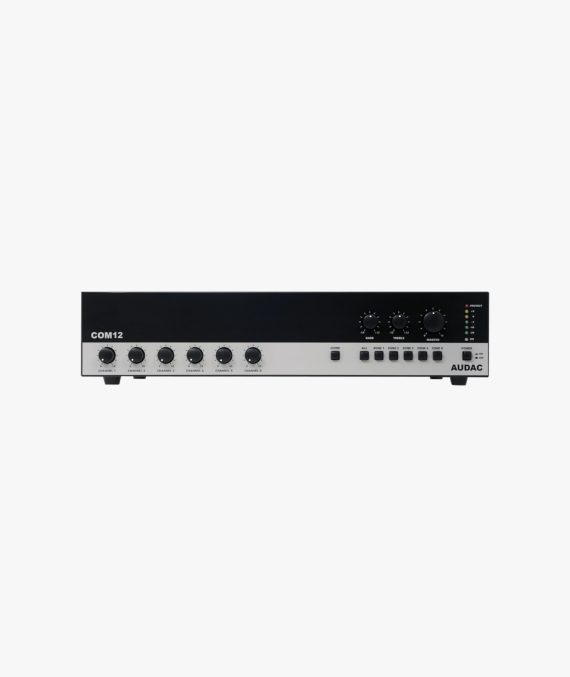

Audac COM12 100V Amplifier

The Audac COM12 100V Amplifier delivers 120 Watts of power for 100V or 4-Ohm systems, with six input channels, 5-zone speaker selection and advanced priority controls. Ideal for commercial audio setups, it supports microphones, line sources, paging systems and fire alarm integration, offering tabletop or rack installation options.

Description

The Audac COM12 100V Amplifier is a versatile and reliable solution for small to medium-sized commercial sound systems. Delivering up to 120 Watts of output power, it supports both 100 Volt constant voltage systems and 4-Ohm low impedance loads. With six input channels featuring individual level controls, the COM12 ensures seamless connectivity and mixing of a wide range of audio sources.

Equipped with two balanced microphone inputs (XLR) with 15V phantom power and priority functionality, the amplifier accommodates dynamic or condenser microphones with ease. Additionally, two switchable inputs provide compatibility with stereo balanced line sources (RCA) or microphones (6.3mm Jack), expanding the microphone capacity to six. Remote microphone and tele-paging inputs facilitate integration with paging stations or telecom systems, while priority mute contacts allow external fire alarm system integration for enhanced safety.

The amplifier includes a 5-zone speaker selector, master volume control and 2-band tone regulation, with output levels visually indicated via a 5-segment VU-bar. Output connections are handled through terminal blocks, with amplifier link inputs and outputs ensuring further system expandability. The COM12 can be installed as a tabletop unit or mounted in a 19-inch equipment rack (2U) using the provided adapters, offering flexibility for various installation requirements.

Key Features:

  • 120 Watt output for 100V systems or 4-Ohm loads
  • Six input channels with individual level control
  • Two balanced microphone inputs with 15V phantom power
  • Two switchable line/microphone inputs
  • Priority audio inputs with chime and mute capabilities
  • 5-zone speaker selector
  • Remote microphone and tele-paging input support
  • Integration with external fire alarm systems
  • Master volume control and 2-band tone regulation
  • Tabletop or 19-inch rack installation
