Toorak College is an independent, inter-denominational school catering to girls from grades 5 to 12 and boys and girls from preschool through grade 4. Offering both boarding and day school options, Toorak College provides a comprehensive education experience focused on fostering academic excellence and well-rounded development.

  • Audac-powered Sound
  • Sony Display Panels
  • Operational Simplicity
Toorak College Illuminate Centre Audio Visual System Education
Collaborative technologies 'illuminate' new open classroom spaces.

In December of 2021, the school began its re-development and transformation of an existing heritage building into the brand-new and aptly-titled “Illuminate Centre.” As part of these upgrades, Vision One were commissioned to design and deliver a revolutionary and collaborative audio visual experience for staff and students alike.

AV/T Objectives
  • Enhance Classroom Interaction: Equip classrooms with advanced 4K display panels and wireless presentation systems to foster dynamic and interactive learning environments.
  • Seamless AV Control Integration: Implement a Kramer Control System to provide faculty with centralised and easy-to-use control over audio-visual technologies across the centre.
  • Optimised Sound Distribution: Install high-quality Audac soundbars and in-ceiling speakers to ensure clear, consistent audio throughout both floors of the Illuminate Centre.
  • Future-Proof Connectivity: Deploy additional wireless presentation devices and flexible touch screen controls to accommodate evolving technological needs and facilitate collaboration.
Visit Client
  • ClientToorak College
  • DateJanuary 2022
  • Products Used Sony 85” FWDX80J Series Semi Commercial Display Panel, Sony 55” FWDX80J Series Semi Commercial Display Panel, Kramer Control System, Kramer VIA GO 2 Wireless Presentation Device, Audac CENA Series SpringFit™ 6.5" In-Ceiling Speakers, Caymon 12RU Equipment Rack
Toorak College Illuminate Centre Audio Visual System Education
Toorak College Illuminate Centre Audio Visual System Education
A two-story technological transformation: immersive displays, superior sound and seamless control.

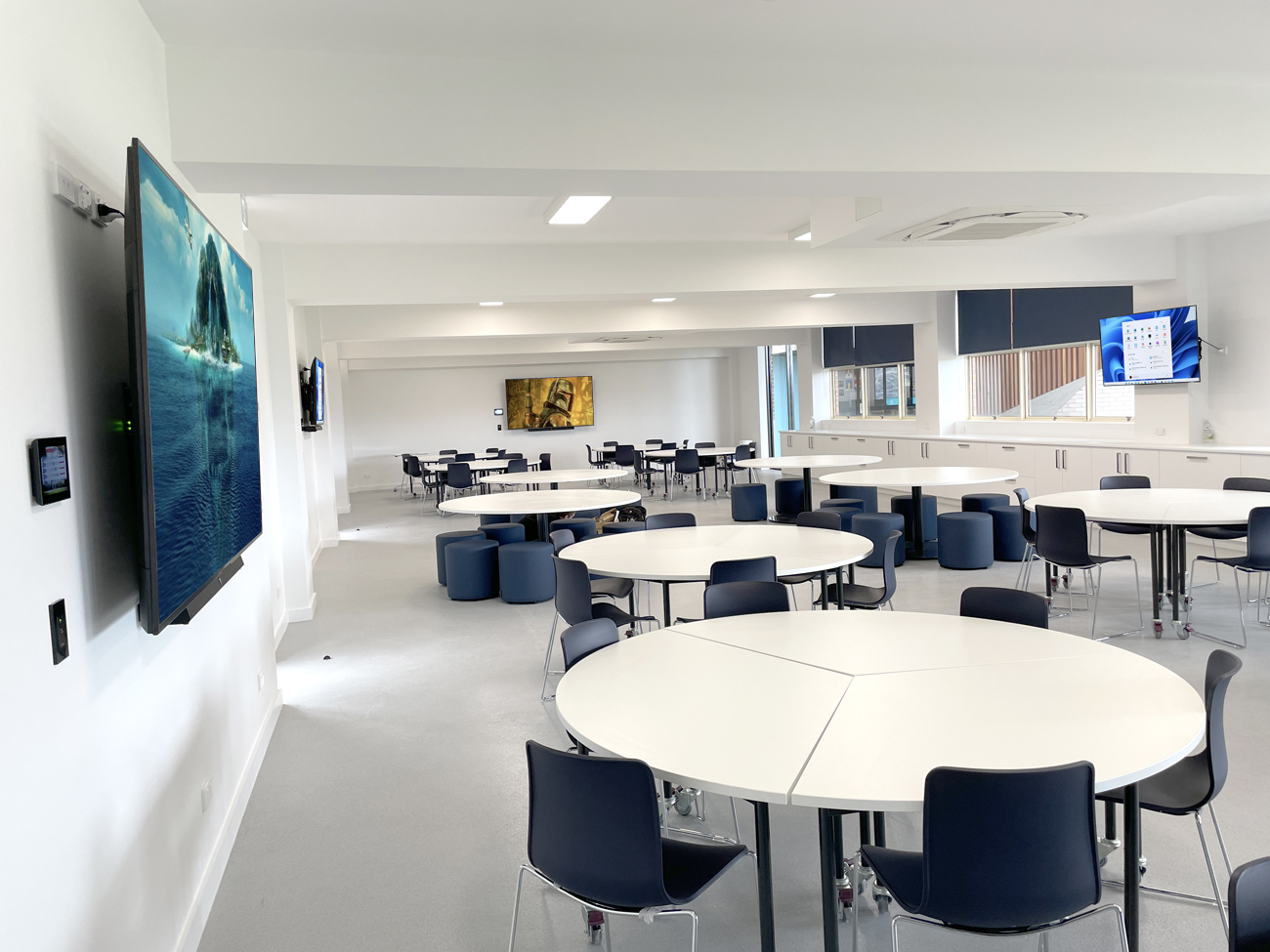

Consisting of two stories, the ground floor saw 4x classrooms fitted with 3x Sony 85” FWDX80J Series Semi Commercial Display Panels and 2x Sony 55” FWDX80J Series Semi Commercial Display Panels. The BRAVIA display brings you the clarity, colour and contrast of 4K plus rich multi-dimensional sound, framed in a slim, luxurious design.

Beneath each display panel, Audac IMEO2 Sound Bars were conveniently installed, maximising global sound output and volume distribution. The IMEO2 Soundbar features a slim and elegant design and includes all required functions for expansion of any audiovisual system with an impressive sound, while having a minimal hassle for installation.

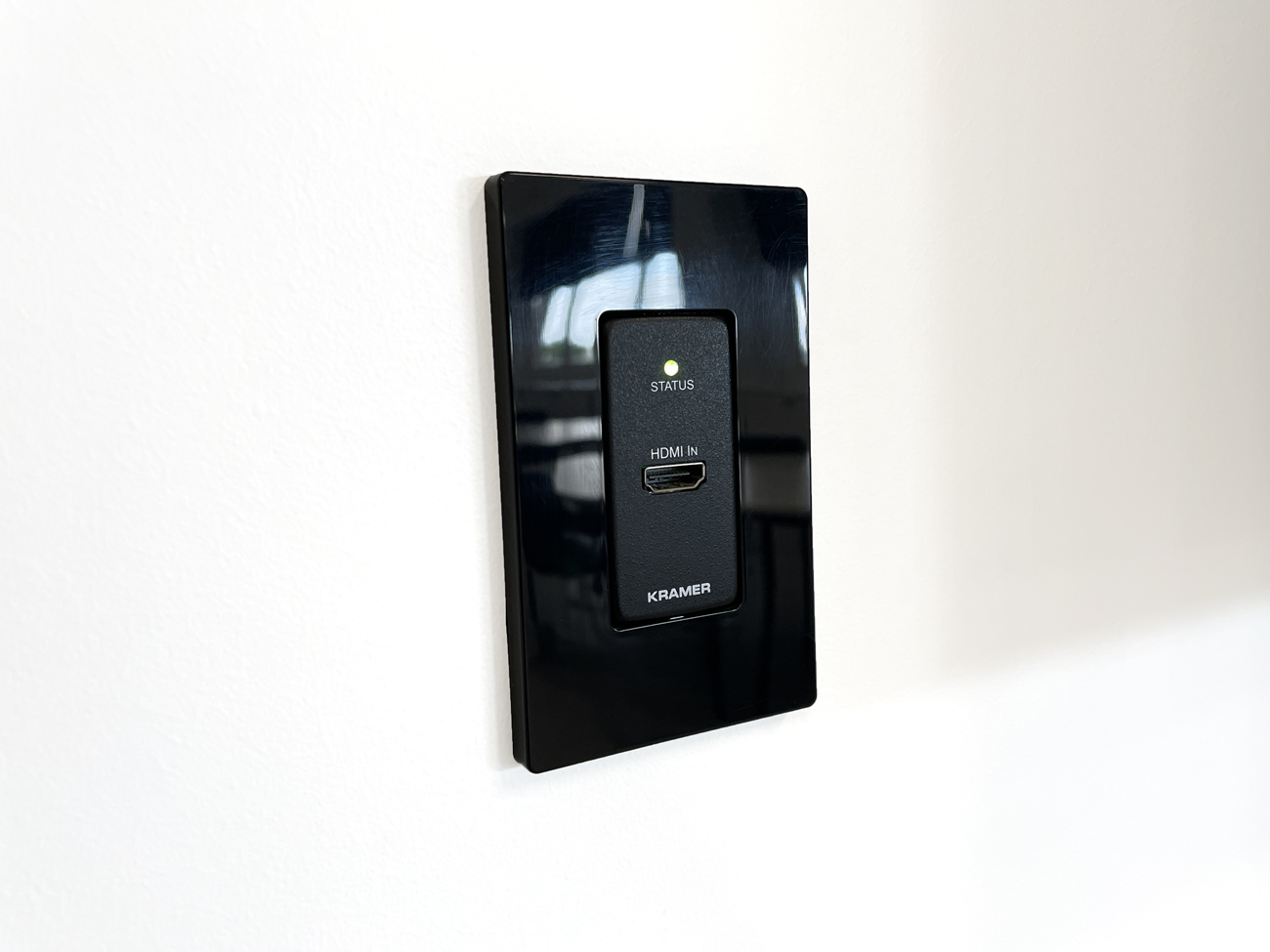

To provide total system commands, we supplied and installed a custom-built Kramer Control System comprising of 1x VS-1616DN-EM 16×16 Modular Multi-Format Digital Matrix Switcher, 2x UHD-IN2-F16 HDMI Input Cards, 2x DTAxr-IN2-F16 HDBT Input Cards, 3x DTAxr-OUT2-F16 HDBT Output Cards, 2x PSE-4 and 1x PSE-1 PoE Injectors, 4x PA-120Z 120W Power Amplifiers, 2x RK-1 Rack Kits and 2x RK-T2B-B Rack Kits, 4x WP-789T/US-D(W) HDBT Wall Plate Transmitters for HDMI Inputs, 5x TP-580R HDMI Receivers, 2x SL-240C 16-Port Master Room Controller with PoE, 4x KT-107 7” Touch Screen Controllers, 1x TL-WR841N TP-Link Wireless N Router and 1x TL-SF1008P TP-Link 4-Port PoE Switch.

Toorak College Illuminate Centre Audio Visual System Education
Toorak College Illuminate Centre Audio Visual System Education
Innovative AV design meets cutting-edge control and wireless presentation solutions.

All graphics and design elements were created and edited in-house by Vision One’s creative AV design team. The Kramer VS-1616DN-EM Modular Matrix Switcher is a high−performance 2×2 to 16×16 4K@60Hz (4:2:0) modular matrix switcher chassis for AV signals. The unit is a multi−format digital switcher, populated from 2×2 to 16×16 in increments of two inputs and/or two outputs.

The Kramer KT-107 Touch Screen Controller is a 7−inch IPS multi−touch, powerful touch panel with 1280×800 resolution. Elegantly designed for decorative room integration, this portable touch panel can be deployed either tabletop or on−wall, mounted inside standard in−wall junction boxes.

As per the school’s deployment history, we added in 4x more Kramer VIA GO 2 Wireless Presentation Devices for wireless presentation and screen-sharing. VIA GO 2 gives iOS, Android, Chromebook, PC and Mac users instant wireless connectivity with 4K advanced presentation capabilities. The product features content streaming with crystal−clear mirrored images and stunning video playback.

On the top floor, we supplied and installed fully-integrated Epson Interactive Projection Systems with 16x Audac CENA Series In-Ceiling Speakers. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects. The SpringFit™ fixation offers the fastest possible installation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment.

Toorak College Illuminate Centre Audio Visual System Education
Toorak College Illuminate Centre Audio Visual System Education
Benefits
  • Improved Student Engagement: The 4K Sony BRAVIA displays and interactive projection systems create visually compelling content, increasing student participation and focus.
  • Streamlined Operations: The Kramer control system allows staff to manage multiple AV components effortlessly, reducing downtime and technical barriers.
  • High-Quality Audio Experience: With Audac soundbars and in-ceiling speakers, both students and staff experience crystal-clear audio, improving communication in all activities.
  • Wireless Flexibility: The VIA GO 2 Wireless Presentation Devices enable seamless screen-sharing and collaboration from any device, fostering a more collaborative learning environment.

Through its partnership with Vision One Technologies, Toorak College has successfully transformed the Illuminate Centre into a hub of innovation and collaboration. The state-of-the-art AV system integrates advanced display, sound and control technologies, enhancing the teaching and learning experience for both staff and students. These upgrades position Toorak College as a leader in education, offering a cutting-edge environment that will support the future growth of its students.
